SmartGen AIN16-M01 Analog Input Module

Technical Parameters:
DC Supply   DC(18~35)V
Case Dimensions(mm)  161.6*89.7*60.7
Operating Temp.  (-25~+70)℃
Power Consumption  <0.5W
Weight  0.33KG

Product Overview:

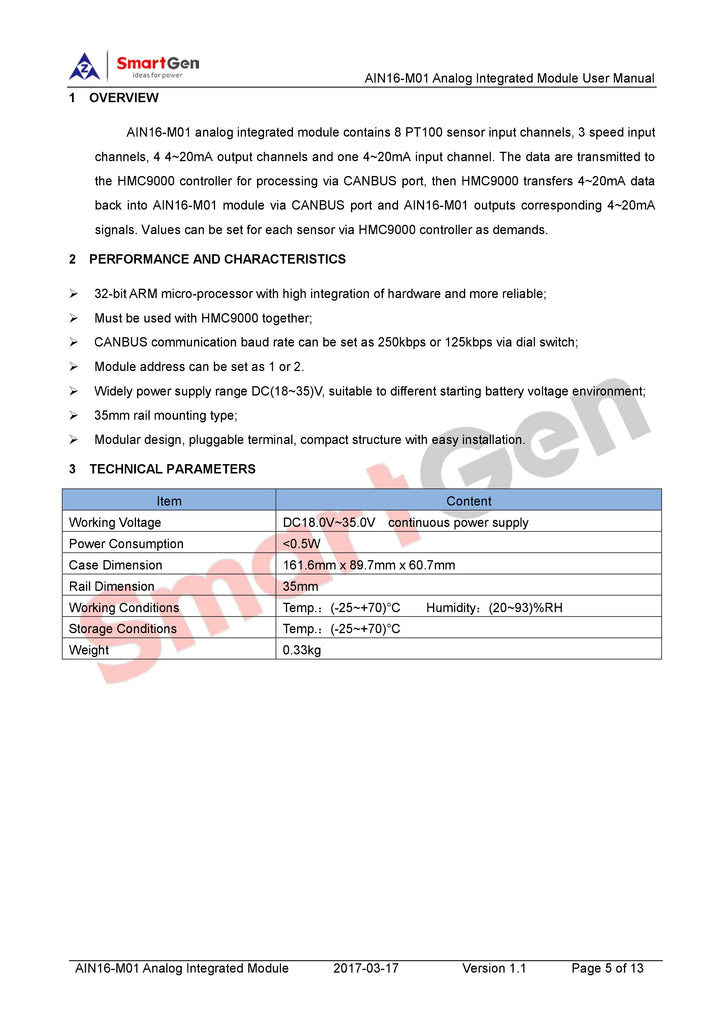

AIN16-M01 analog integrated module contains 8 PT100 sensor input channels, 3 speed input channels, 4 4~20mA output channels and one 4~20mA input channel. The data are transmitted to the HMC9000 controller for processing via CANBUS port, then HMC9000 transfers 4~20mA data back into AIN16-M01 module via CANBUS port and AIN16-M01 outputs corresponding 4~20mA signals. Values can be set for each sensor via HMC9000 controller as demands.

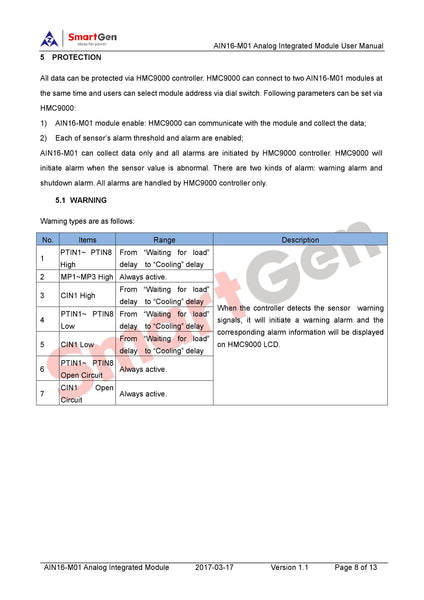

PERFORMANCE AND CHARACTERISTICS

1. 32-bit ARM micro-processor with high integration of hardware and more reliable;

2. Must be used with HMC9000 together;

3. CANBUS communication baud rate can be set as 250kbps or 125kbps via dial switch;

4. Module address can be set as 1 or 2.

5. Widely power supply range DC(18~35)V, suitable to different starting battery voltage environment;

6. 35mm rail mounting type;

7. Modular design, pluggable terminal, compact structure with easy installation.
