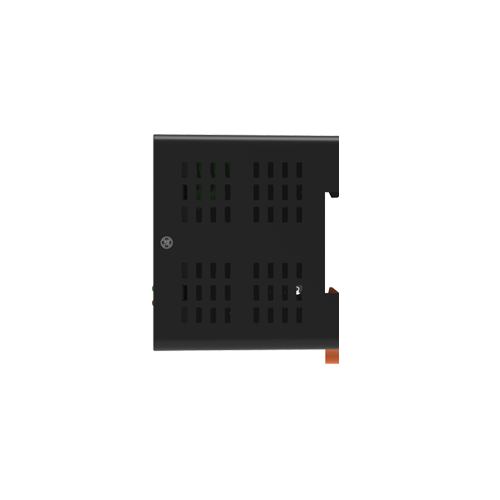

SmartGen BAC1203VL (12V3A) Mini Battery Charger

Technical Parameters:
Battery Voltage  12V
Max. Charging Current  3A
Rated Input Voltage  AC(16~36)V
AC Input Frequency  45/65Hz
Max. Input Current  3.5A
No-Load Power Consumption  <2W
Operating Mode  Two segments
Maximum Efficiency  80%
Operating Temp.  (-30~+70)℃
Storage Temp.  (-40～+85)°C
Net Weight(kg)  0.15
Case Dimensions(mm)  80*35.5*65

Product Overview:
Fit with up-to-date power supply device, battery charger BAC1203VL is specially designed for meeting the charging characteristics of lead-acid batteries and can be used for long-term supplement (float) charging of 12V battery pack.

PERFORMANCE AND CHARACTERISTICS

Applies switch power supply structure, wide range and low input voltage, small size, light weight, high efficiency rate;

Applies automatic two-stage charging process (first constant current, then constant voltage) according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;

Short-circuit protection function;

Suitable for 12V storage battery with maximum charging current 3A;

LED display: Power indication and charging indication;
