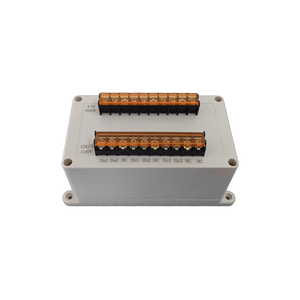

SmartGen PTM6910 Potential Transformer Module

Technical Parameters:

Case Dimensions(mm) 188*88*72
Operating Temp. (-40~+85)°C
Weight 2.8kg


Product Overview:

PTM6910 Potential Transformer Module is a module that transforms input voltage 690VAC (Rated) to output 100VAC (Rated). It can be applied in higher voltage acquisition scenario together with the controller.


PERFORMANCE AND CHARACTERISTICS

1. Input voltage range: (0~828)VAC;
2. Output voltage range: (0~120)VAC;
3. Phase shift: 30′;
4. Accuracy: 0.2%;
5. Realize signal isolation;
6. Suitable for 3P3W, and 3P4W.
